Sistema
de Bafles 2.1
Sistema compuesto por 2 Radius R 90 + Subwoofer activo Radius 360.
Radius
R90
The R90HD is a high-class mini monitor. Unprecedented enclosure
rigidity and leading edge drive unit technology in the shape
of a 100mm (4”) MMP®II mid/bass driver and 25mm
(1”) C-CAM® gold dome tweeter combine to produce
clarity, dynamics and imaging abilities that are unparalleled
in a speaker of this size. It can fill a room with high fidelity
sound and yet visually melt into the background. The R90HD
can be installed easily on ceiling or wall using the same
high quality angled bracket supplied. Use the optional bespoke
RadiusHD stand for floor positions.
4" MMP®II. The Metal Matrix Polymer drivers have
been completely re-worked and re-modelled with the aid of
new design and simulation tools to achieve higher sensitivity
and increased magnetic linearity. The new shaped T-section
pole and focussed magnetic gap produces better linearity
and lower distortion, resulting in fast punchy bass. All
drivers are dedicated and model specific, with each model
in the Radius HD series being designed and voiced individually.
1" Gold C-CAM® tweeter providing extension to in
excess of 35 KHz ensuring the wide frequency bandwidth of
HD music and cinema formats can be replayed faithfully.
Magnetically shielded drivers allow Radius HD to be safely
used near sensitive microprocessor equipment or plasma/LCD
displays.
High quality crossover uses high-grade metalised Polypropylene
capacitors for increased clarity. High-grade air core and
laminated iron core inductors give lowest possible distortion
and low insertion losses.
Single through-bolt driver fixing provides mechanical de-coupling
and enhanced mid-band clarity and resolution. The through-bolts
also act as rigid cross bracing to give a very solid non-resonant
cabinet.
Internal PTC auto-reset protection circuit to prevent over-driving.
Specially developed high grade PCOFC internal cable is used
throughout to ensure maximum signal transfer at all frequencies
and low signal resistance.
Flush fitting grille with rotate-able ‘m’ logo
for positioning in Landscape or portrait orientation.
A specially designed die-cast metal wall bracket is supplied,
providing easy install and adjustment for wall positioning.
Especificaciones
Frequency Response:
80 Hz - 35 KHz
Sensitivity (1W@1m): 87 dB
Nominal Impedance:
8 Ohms
Power Handling Single (RMS):
60 W
System Power Handling (RMS): 100 W
Recommended Amplifier Requirements: 10 - 100 W
Maximum SPL (dBA): 105
Bass Alignment: Bass reflex - rear ported
Drive Unit Complement: 1 x 100mm (4") MMP®II cone
mid-bass driver.
1 x 25mm (1") C-CAM® gold dome tweeter
External Dimensions
(H x W x D): mm (inches) 198 x 125 x 140 mm
(7 13/16 x 4 15/16 x 5 1/2)
Weight (each):
Kg (lbs)
2 (4 3/8

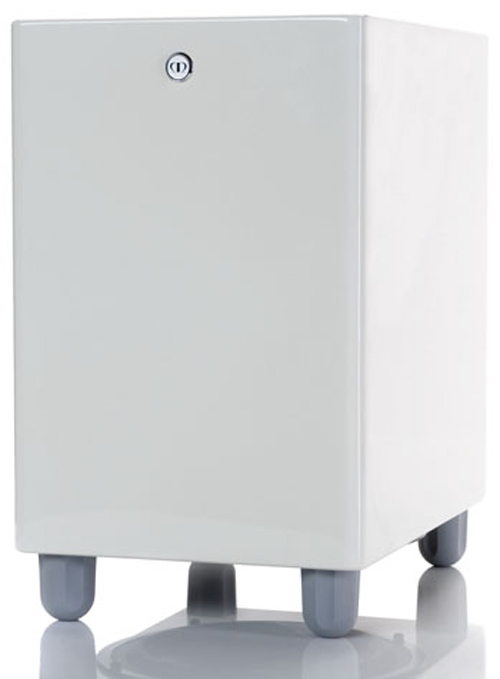

Radius
360 Subwoofer activo de 8´
Este subwoofer
activo ultracompacto posee la velocidad, la sutileza y
la precisión tonal necesarias para mejorar la reproducción
musical de la más alta calidad, pudiendo asimismo
ofrecer la potencia y el empuje que demandan las bandas
sonoras de las películas modernas gracias a su transductor
de 8 pulgadas (203 mm) de radiación inferior controlado
por un potente amplificador interno de 100 vatios continuos
en Clase AB. Incorpora un control para seleccionar la frecuencia
de corte del filtro paso bajo (entre 40 y 180 Hz), un conmutador
de selección de la fase absoluta (0º/180º),
entradas RCA para señal estéreo y de efectos
de baja frecuencia (LFE), pies antiresonantes de goma siliconada
y dos ajustes de ecualización para optimizar la
escucha de programas musicales y audiovisuales.
Recinto construido
con paneles de MDF de 18 mm de grosor y refuerzos internos.
Amplificador interno de 100 vatios continuos en Clase AB con fuente de alimentación
conmutada.
Transductor de 8" (203 mm) de radiación inferior capaz de realizar
grandes desplazamientos.
Control de la frecuencia de corte del filtro divisor de frecuencias interno.
Variable entre 40 y 180 Hz.
Selector de la fase absoluta entre 0 y 180 grados.
Entradas de línea con conectores RCA para estéreo y señal
LFE.
Pies antiresonancia de goma siliconada.
Dos ajustes de ecualización preseleccionado para la optimización
de música y películas.
Especificaciones
Low Frequency
Limit: 27 Hz
Upper Frequency Limit: 40 - 180 Hz Variable
Low Pass Filter Alignment:
12dB / Octave variable
Cabinet Specification:
Bass reflex - downward firing port.
18mm (3/4) M.D.F. construction
Amplifier Output (RMS):
100 W
Amplifier Classification: Class - A-B amplifier
Driver Complement: 1 x 8" Ultra long throw subwoofer driver
Input Impedance:
20K Ohms
Mains Input Voltage (factory preset): 110 - 120 Vac / 220 - 240 Vac
50/60Hz
External Dimensions (H x W x D):
mm (inches) 370 x 225 x 320
(14 9/16 x 8 7/8 x 12 5/8)
Weight: 12.7 (28)
