Sistema
de Bafles Satelitales 5.1

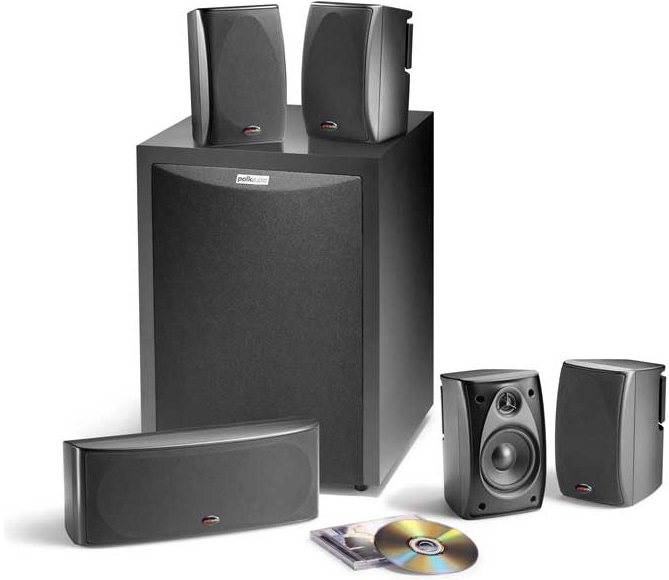

Introducing a
complete home theater audio solution for people who crave
true cinema excitement without breaking the bank.—the
RM6750. The integrated Power Port Bass Vent designed right
onto the back of the compact Satellite & Center Channel
speakers-the same technology used in full-sized Polk Audio
speakers-improves lower midrange response and all-important
sub/sat blending, taking the RM6750 beyond the performance
realm of any other sub/sat system in this price range.
This integrated design reveals midrange with no “hole” in
the frequencies between the sats and the sub, for male
vocals that are rich and full-not thin and weak like other
sub/sat systems. The RM6750 comes with its own subwoofer
module, an 8 inch long throw driver and high current power
amplifier for real ground-shaking bass thrills.
The RM6750 features:
Satellites use a 3-1/4 inch (8.25cm) Polymer composite cone
driver: lightweight and efficient, for clear, distortion-free
midrange. The center speaker uses two of the same high quality
drivers for even greater output capability.
Integrated baffle and grille design allows maximum sound
dispersion with minimum diffraction for superior imaging
and room-filling sound. Everyone in the room hears clear,
well-balanced sound.
High performance 1/2 inch (12mm) Silk Dome Tweeters for superior
imaging and smooth highs.
Mineral-filled Polypropylene Enclosures are non-resonant
for great looks and natural sound.
Satellites available in either Black or Titanium finish (Subwoofer
is always easy-to-hide black)
Individual satellites available to accommodate 6.1 or 7.1
channel systems.
Integrated Keyhole Slot wall mounting brackets (two Keyhole
Slots on Center Channel Speaker) allow for easy wall mounting,
with no extra brackets or wall mounts to buy; threaded inserts
accept popular articulating brackets (sold separately).
The Subwoofer, in a compact ported enclosure, features an
8-inch Long-Throw Dynamic Balance Poly Composite Driver for
longer driver excursion and better linearity, resulting in
big, musical bass.
Built-in Subwoofer power amp (50 Watts Continuous/100 Watts
Dynamic Power) with active crossover offers the control you
need for real home theater thrills and big, musical, accurate
bass. Features variable Low-Pass Filter and Volume (level)
controls, as well as Phase Switching Toggle, and signal-sensing
Auto ON/OFF, for even more control and convenience.
Driver Complement
Fronts
Midrange 1 - 3-1/2" Diameter (8.89cm)
Polymer composite cone
Tweeter 1 - 1/2" Diameter (1.27cm)
Silk/Polymer composite dome
Surrounds
Midrange 1 - 3-1/2" Diameter (8.89cm)
Polymer composite cone
Tweeter 1 - 1/2" Diameter (1.27cm)
Silk/Polymer composite dome
Center
Midrange 2 - 3-1/2" Diameter (8.89cm)
Polymer composite cone
Tweeter 1 - 3/4" Diameter (1.91cm)
Silk/Polymer composite dome
Subwoofer
Subwoofer 1 - 8" Diameter (20.32cm)
Electrical
Overall Frequency
Response 40Hz - 24kHz
Lower -3dB Limit 45Hz
Upper -3dB Limit 20kHz
Nominal Impedance 8 ohms
Recommended Amplifier Power 20 - 100 w/channel
Efficiency 89 dB
Inputs Spring clip speaker wire inputs
Dimensions
Fronts
Cabinet Size 6-1/2" H x 4-1/16" W x 5" D
(16.51cm H x 10.32cm W x 12.70cm D)
Weight 2.00 lbs. (0.91kgs)
Mounting Options Built-in keyhole slot and threaded insert
to accept articulating brackets such as Omni Mount
Enclosure Type Vented via rear-mounted Power Port
Surrounds
Cabinet Size 6-1/2" H x 4-1/16" W x 5" D
(16.51cm H x 10.32cm W x 12.70cm D)
Weight 2.00 lbs. (0.91kgs)
Mounting Options Built-in keyhole slot and threaded insert
to accept articulating brackets such as Omni Mount
Enclosure Type Vented via rear-mounted Power Port
Center
Cabinet Size 4-5/16" H x 11-3/16" W x 5-13/16" D
(10.95cm H x 28.42cm W x 14.76cm D)
Weight 5.25 lbs. (2.38kgs)
Mounting Options Built-in keyhole slot and threaded insert
to accept articulating brackets such as Omni Mount
Enclosure Type Vented via rear-mounted Power Port
Subwoofer
Cabinet Size 15-7/8" H x 11" W x 13-1/2" D
(40.32cm H x 27.94cm W x 34.29cm D)
Weight 28.00 lbs. (12.70kgs)
Enclosure Type Slot-load port
