Sistema
de Bafles Satelitales 5.1
Beauty and Brawn in One Compact System

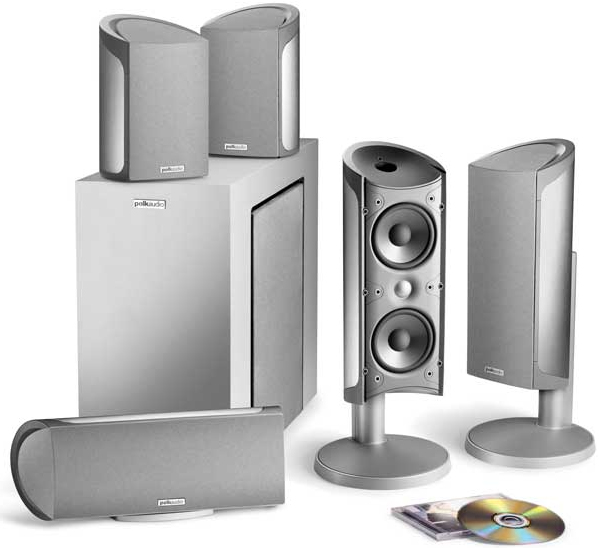

Five compact speakers and a high performance Powered Subwoofer
make up the RM6900 compact home theater speaker system.
Its stylishly sculpted anodized Aluminum Satellites look
awesome next to your plasma or flat screen television,
and can be mounted either on the wall using their aimable
brackets or on shelves. Either way, this system was designed
for minimal intrusion into your space, and maximum sound
quality. High tech materials and features, such as Satellite
Power Ports and Subwoofer Slot Load venting technologies,
ensure superior sub/sat system performance, delivering
rich, full-bodied, big speaker sound from stylish, compact
packages.
The RM6900 features:
Stylishly curved satellite enclosures formed of heavy duty,
non-resonant Aluminum; the shape breaks up internal standing
wave resonance for pure, lifelike sound.
Individual satellites available to accommodate 6.1 or 7.1
channel systems.
The satellites feature PowerPort® Bass Vents hidden under
the grilles to extend and strengthen their lower-midrange
performance for a seamless blend with the subwoofer output.
Unlike competing satellite systems, with this system you'll
experience full, rich, natural voices and other midrange
sounds.
NOTE: Illustration showing grille lifting straight up is
not representative, merely used to demonstrate how the Power
Port fits onto the cabinet. To remove RM Satellite grill,
pull the grille straight forward.
Center Channel Speaker features an exclusive Center Channel
Cradle that aims the speaker toward the listener, from
above or below the TV.
Satellites and center feature Swivel Wall-Mounting Brackets
with hidden wire channels
Threaded inserts on the back of the satellite and center
speakers allow use of fully articulating brackets (sold
separately).
Front Stage Satellites come with custom designed desk or
shelf Stands with hidden wire channels.
Satellites and center speakers feature two 3-1/4 inch (8.25cm)
Mineral Filled Polymer Dynamic Balance midrange drivers
for clear, distortion-free midrange even at high volume
levels.
Broad dispersion design allows everyone in the listening
area to hear clear, well-balanced sound.
Satellites feature high performance 3/4 inch (19mm) Dynamic
Balance Silk/Polymer Composite Dome Tweeter for sweet highs
and more lifelike imaging.
Connect your RM Series Satellites securely and conveniently
with their high quality 5-way binding post inputs.
Space saving side-firing, slim profile woofer design allows
greater placement flexibility and a less obtrusive look.
Powered Subwoofer with 12 inch driver and Slot Load Bass
Vent pours out deep, efficient bass.
Satellites are magnetically shielded for safe placement
near your state-of-the-art TV or video monitor with no
risk of video distortion.
Driver Complement
Fronts
Midrange 2 - 3-1/2" Diameter (8.89cm)
Polymer composite cone
Tweeter 1 - 3/4" Diameter (1.91cm)
Silk/Polymer composite dome
Surrounds
Midrange 1 - 3-1/2" Diameter (8.89cm)
Polymer composite cone
Tweeter 1 - 3/4" Diameter (1.91cm)
Silk/Polymer composite dome
Center
Midrange 2 - 3-1/2" Diameter (8.89cm)
Polymer composite cone
Tweeter 1 - 3/4" Diameter (1.91cm)
Silk/Polymer composite dome
Subwoofer
Subwoofer 1 - 12" Diameter (30.48cm)
Electrical
Overall Frequency
Response 28Hz - 24kHz
Lower -3dB Limit 32Hz
Upper -3dB Limit 20kHz
Nominal Impedance 8 ohms
Minimum Impedance 8 ohms
Recommended Amplifier Power 20 - 150 w/channel
Power Handling (continuous) 100 w
Power Handling (peak) 200 w
Efficiency 89 dB
Dimensions
Fronts
Cabinet Size 12-1/2" H x 4-3/8" W x 5-1/16" D
(31.75cm H x 11.11cm W x 12.86cm D)
Weight 5.20 lbs. (2.36kgs)
Mounting Options keyhole slots plus threaded inserts for
optional articulating bracket
Surrounds
Cabinet Size 7-1/16" H x 4-3/8" W x 5-1/16" D
(17.94cm H x 11.11cm W x 12.86cm D)
Weight 3.00 lbs. (1.36kgs)
Mounting Options keyhole slots plus threaded inserts for
optional articulating bracket
Center
Cabinet Size 4-3/8" H x 12-1/2" W x 5-1/16" D
(11.11cm H x 31.75cm W x 12.86cm D)
Weight 5.20 lbs. (2.36kgs)
Mounting Options keyhole slots plus threaded inserts for
optional articulating bracket
Subwoofer
Cabinet Size 16-1/2" H x 23-15/16" W x 8" D
(41.91cm H x 60.80cm W x 20.32cm D)
Weight 34.00 lbs. (15.42kgs)
Enclosure Type Slot-load port
