Subwoofer
Activo 10´

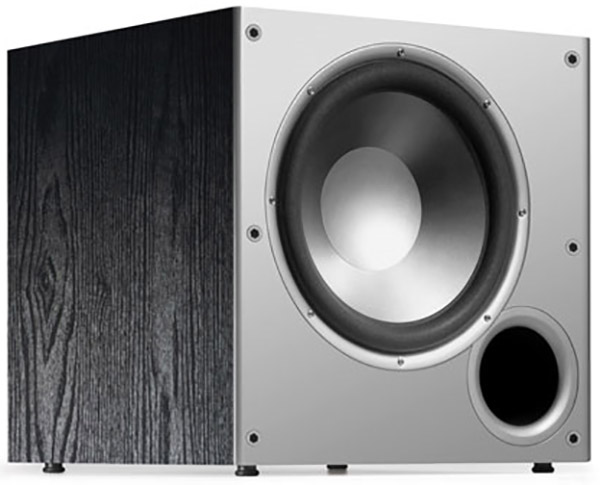

The PSW10 offers
a clean, stylish look with powerful, accurate and musical
bass in a compact enclosure. Built for speed, power and
value, the PSW10 is a great introduction to high performance
bass for movie and music listening.
Non-resonant MDF
construction with 3/4" baffle and internal bracing
for deep bass impact with superior detail, accuracy and
musicality.
10" Dynamic Balance Composite Woofer Drivers for "tight" musical
bass.
State-of-the-art laser-based Klippel measurement technology perfectly centers
the subwoofer's voice coil in its magnetic field for improved linearity and
deep, precise bass.
Built-in High Current Amplifier supplies all the good, clean power you need
for big bass.
LINE and SPEAKER level inputs ensure easy hook-up compatibility with virtually
any system.
Amplifier features Adjustable Low-Pass Crossover, Phase Switch and Subwoofer
Volume Control to more easily control your bass output and the sub¡¦s
blending characteristics with your front stage speakers.
Signal-sensing "smart amp" Auto ON/OFF Circuitry knows when to turn
itself on and off.
Available finishes (Black & Cherry) with Titanium faces match Monitor Series
loudspeakers.
Especificaciones
Driver
Complement
Subwoofer 1 - 10" Diameter (25.40cm)
Dynamic Balance Polymer Composite cones
Electrical
Overall Frequency Response 35Hz - 200Hz
Lower -3dB Limit 40Hz
Upper -3dB Limit 160Hz
Crossover variable 80Hz - 160Hz
Inputs Speaker level, line level
Outputs Speaker level
Dimensions
Cabinet Size 14-3/8" H x 14" W x 16-1/8" D
(36.51cm H x 35.56cm W x 40.96cm D)
Enclosure Type Vented via front panel flared port
Power Output 50 watts Continuous Average Output
Dynamic Power Output 100 watts
Available in 220V
Shipping/Other
Product Weight 26.00 lbs. (11.79kgs)
Shipping unit: each
Total Shipping Weight 30.00 lbs. (13.61kgs)
