Amplificador
Estereo de
Alta Fidelidad

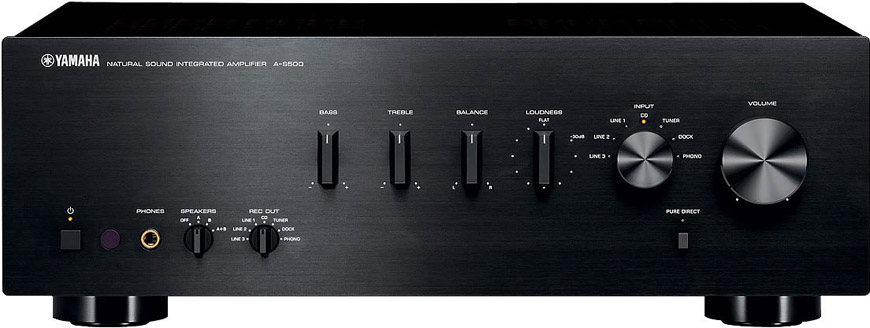

The A-S500 is designed
for superb musical expression with high performance, outstanding
power and sound quality combining ToP-ART
technology and ART Base chassis construction with gold–plated
speaker terminals and dual aluminum heat sinks and a Center Bar
for crisp, clean sound. Advanced features include continuously
variable loudness control, Pure Direct, along with Yamaha iPod
dock connection, for endless music enjoyment options.
Dual aluminum-extruded heat sinks ensure effective heat dissipation
and help achieve crisp, clean sound.

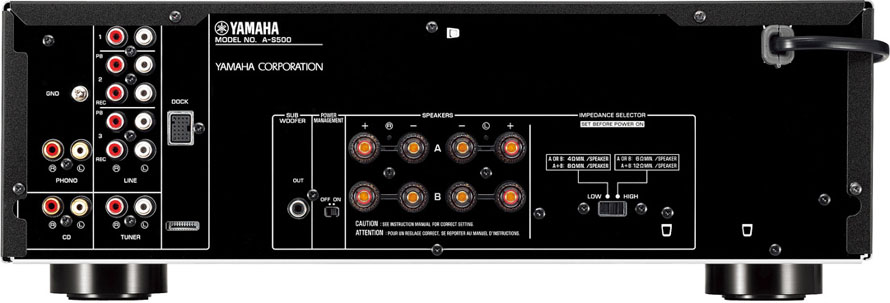

Gold-plated speaker terminals and RCA in/out jacks are durable
and provide highest quality connections.
Center bar reinforces the internal structure to further prevent
vibration from affecting the sound quality.
Pure Direct uses the shortest signal route for higher sound purity
with low noise and transmission losses.
Yamaha's exclusive Continuously Variable Loudness Control for
listening at low volumes.
The built-in iPod Dock has an independent power supply for extremely
high S/N ratio.
Advanced Features:
85W x 2 high power output
ToP-ART (Total Performance Anti-Resonance Technology)
Aluminum-extruded front panel
Subwoofer out
Speaker A, B or A+B selection
Rec Out selector
Power management (Auto power off)
Slim-design remote control
Dimensions (W x H x D): 17-1/8" x 6" x 15-1/4"
Especificaciones:
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) 85 W + 85 W (0.019%
THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 120 W + 120
W
Pure Direct Yes
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) 0.015% (42.5
W/8 ohms)
High Dynamic Power/Channel (8/6/4/2 ohms) 130/150/185/220 W
Signal-to-Noise Ratio (CD) 100 dB (Pure Direct On, 200 mV)
Frequency Response 10 Hz-100 kHz ±1 dB
Audio In / Out 6 / 2
Subwoofer Out Yes
Standby Power Consumption 0.5 W
Power Management (Auto Power Off) Yes (6 hours)
Dimensions (W x H x D) 435 x 151 x 387 mm
Weight 10.3 kg
