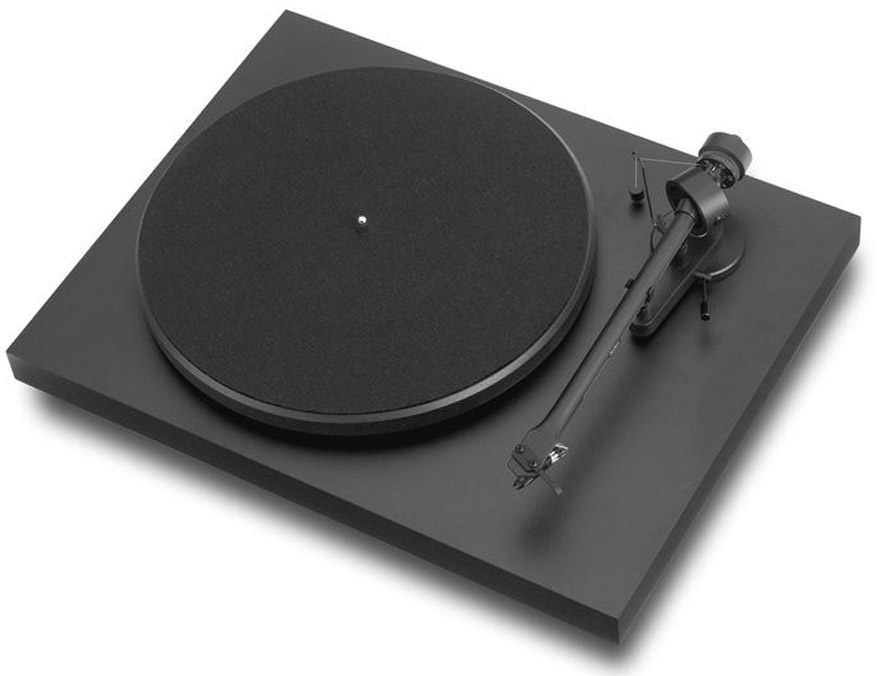

Giradiscos Manual Con Capsula OM5E
Manual turntable with 8,6" tone-arm
Turntable
• Plinth out of MDF in matt black or with glossy black, glossy white, silver, red, blue and green surface
• 1,3 kg balanced steel platter with felt mat
• Bearing Block 3: Low-tolerance chrome-plated stainless-steel axle runs on a polished ball bearing in a brass bearing housing
• Motor decoupled to reduce vibration
• Special, resonance damping feets
Tonearm 8.6 D
• 8.6" tone-arm with aluminum headshell made aout of one piece
• Inverted tonearm bearing comprises inverted hardened stainlesssteel points and sapphire thrust-pads
• Single-screw fi xing of armtube allows rotation for easy adjustment of needle azimuth despite fi xed headshell
• Silicon damped tone-armlift
Cartridge
• Ortofon OM5e
Especificaciones:
| Fitted cartridge |
Ortofon OM 5E |
| Amplifier connection |
MM-input |
| Nominal speeds |
33 / 45 / 78 r.p.m. (78 optional) |
| Dust cover |
yes |
| Tonearm |
Pro-Ject 8.6 |
| Effective tonearm length |
8,6 " (218,5mm) |
| Effective tonearm mass |
9,5g |
| Overhang |
18,5mm |
| Supplied counterweight |
cartridge weight 3,5 - 5,5g |
| Optional counterweights |
cartridge weights 6 - 9g, 1,5 - 3g |
| Downforce range |
10 - 30mN |
| Speed variance |
±0,8 % |
| Wow and flutter |
±0,12 % |
| Signal to noise |
-65dB |
| Platter weight/diameter |
1,3kg/280mm |
| Power supply type |
Mains-fed outboard power supply |
|
220 - 240V, 50 cycles or 100 - 110V, 60 cycles |
| Output voltage |
16V/500mA AC |
| Power consumption |
2W |
| Depth (lid open) |
400mm |
| Height (lid open) |
370mm |
| Dimensions (lid open) |
415 x 365 x 405mm |
| Dimensions (lid closed) |
415 x 118 x 320mm |
| Weight |
5,5kg |
| |
Ortofon OM 5E Technical data
Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *) - 65 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
*) Typical value
Tracking force range - 1,5-2,0 g (15-20 mN)
Tracking force, recommended - 1,75 g (17,5 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight - 5 g
Replacement stylus unit - Stylus 5 E
