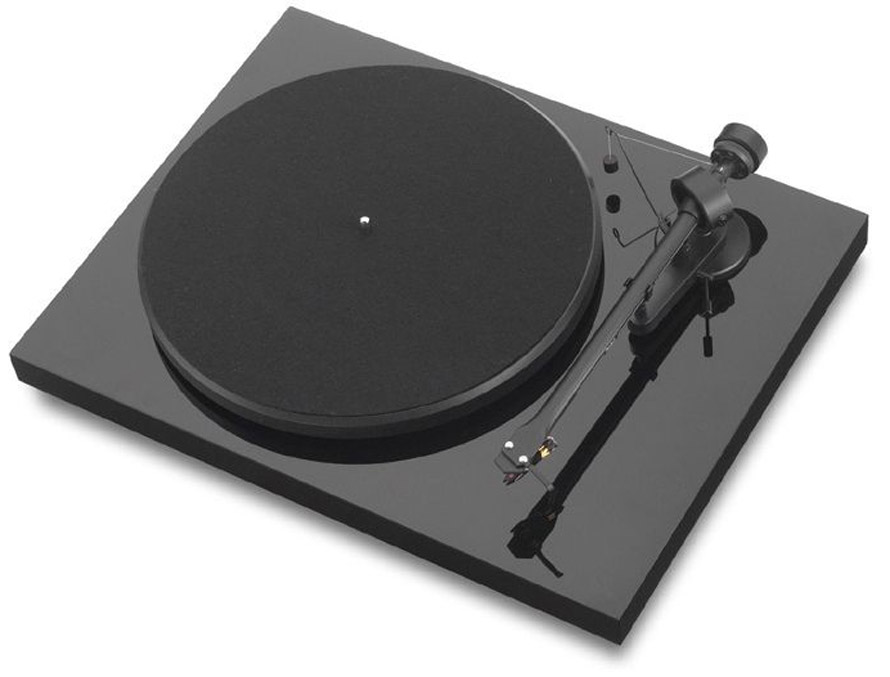

Giradiscos Manual Con Capsula OM10
Manual turntable with 8,6" tone-arm
Turntable
• Plinth out of MDF in matt black or with glossy black, glossy white, silver, red, blue and green surface
• 1,3 kg balanced steel platter with felt mat
• Bearing Block 3: Low-tolerance chrome-plated stainless-steel axle runs on a polished ball bearing in a brass bearing housing
• Motor decoupled to reduce vibration
• Special, resonance damping feets
Tonearm 8.6 D
• 8.6" tone-arm with aluminum headshell made aout of one piece
• Inverted tonearm bearing comprises inverted hardened stainlesssteel points and sapphire thrust-pads
• Single-screw fi xing of armtube allows rotation for easy adjustment of needle azimuth despite fi xed headshell
• Silicon damped tone-armlift

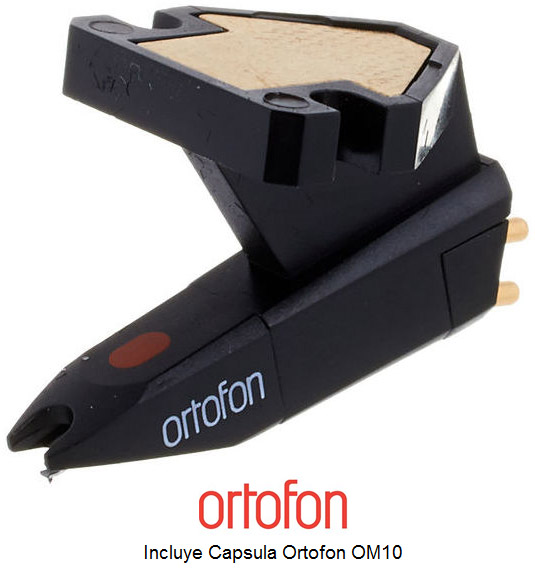

Cartridge
• Ortofon OM10
Especificaciones:
| Fitted cartridge |
Ortofon OM 10 |
| Amplifier connection |
MM-input |
| Nominal speeds |
33 / 45 / 78 r.p.m. (78 optional) |
| Dust cover |
yes |
| Tonearm |
Pro-Ject 8.6 |
| Effective tonearm length |
8,6 " (218,5mm) |
| Effective tonearm mass |
9,5g |
| Overhang |
18,5mm |
| Supplied counterweight |
cartridge weight 3,5 - 5,5g |
| Optional counterweights |
cartridge weights 6 - 9g, 1,5 - 3g |
| Downforce range |
10 - 30mN |
| Speed variance |
±0,8 % |
| Wow and flutter |
±0,12 % |
| Signal to noise |
-65dB |
| Platter weight/diameter |
1,3kg/280mm |
| Power supply type |
Mains-fed outboard power supply |
|
220 - 240V, 50 cycles or 100 - 110V, 60 cycles |
| Output voltage |
16V/500mA AC |
| Power consumption |
2W |
| Depth (lid open) |
400mm |
| Height (lid open) |
370mm |
| Dimensions (lid open) |
415 x 365 x 405mm |
| Dimensions (lid closed) |
415 x 118 x 320mm |
| Weight |
5,5kg |
| |
| Specifications |
|
| Type of pickup: |
MM (Moving Magnet) |
| Output voltage: |
4mV * |
| Amplifier connection: |
Phono MM |
| Channel deviation at 1 kHz: |
2dB |
| Crosstalk at 1kHz: |
22dB |
| Crosstalk at 15kHz: |
15dB |
| Frequency range: |
20-22 . 000 Hz |
| Frequency response: |
20-20 . 000 Hz + 3dB / 1dB |
| Tracking ability at 315 Hz: |
70 .mu.m ** |
| Needle compliance: |
25 micron / mN |
| found. Tonearm type: |
very easily, easily and |
| |
moderate *** |
| Abtastdiamant: |
elliptic |
| Rounding: |
r / R 8/18 micron |
| Tracking force range: |
1 2,5 -17,5 mN ( 1,25 -1,75 g) |
| Recommended tracking force: |
15mN ( 1,5 g) |
| Scanning: |
20 degrees |
| DC resistance: |
750 Ohm |
| Inductance: |
450 mH |
| found. Terminator: |
47 kOhm |
| found. Connection capacity: |
200-500 pF |
| Weight: |
2,5 g (5 g with the document inserted additional weight) |
| Special feature: |
*** Without pickled additional weight |
| |
Suitable for medium weight tonearms |
| Replacement needle insertion: |
Stylus 10 |
| * At 1kHz, 5cm / sec. ** At recommended tracking force |
