Giradiscos Manual Con Capsula 2M Red

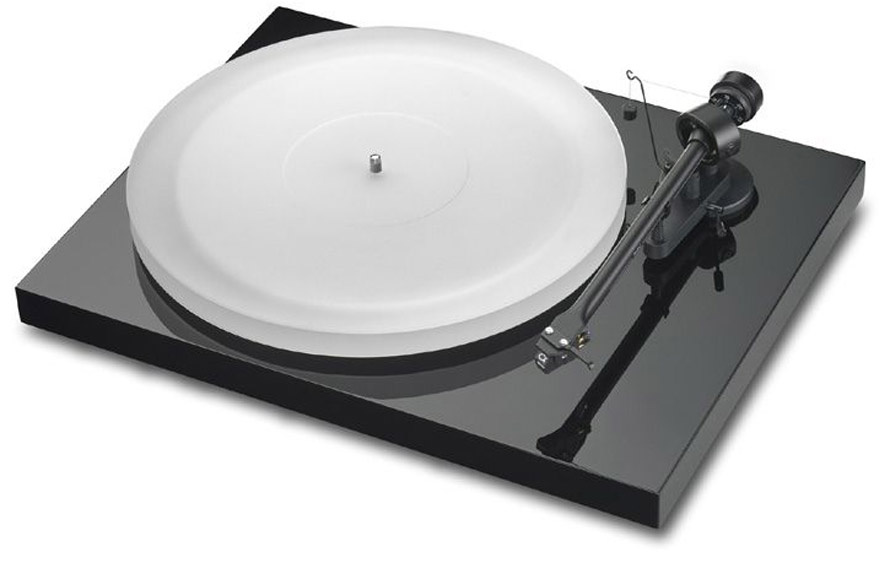

Manual turntable with 8,6" tone-arm
Turntable
• Plinth out of MDF with glossy black, white or red surface
• Resonce-free acrylic platter
• Bearing Block 3: Low-tolerance chrome-plated stainless-steel axle runs on a polished ball bearing in a brass bearing housing
• Motor decoupled to reduce vibration
• Special, resonance damping feets
Tonearm 8.6 D
• 8.6" tone-arm with aluminum headshell made aout of one piece
• Inverted tonearm bearing comprises inverted hardened stainlesssteel points and sapphire thrust-pads
• Single-screw fi xing of armtube allows rotation for easy adjustment of needle azimuth despite fi xed headshell
• Silicon damped tone-armlift
High performance cartridge
• Ortofon 2M Red
Especificaciones:
| Fitted cartridge |
Ortofon 2M Red |
| Amplifier connection |
MM-input |
| Nominal speeds |
33 / 45 / 78 r.p.m. (78 r.p.m. optional) |
| Dust cover |
yes |
| Tonearm |
Pro-Ject 8.6 |
| Effective tonearm length |
8,6 " (218,5mm) |
| Effective tonearm mass |
9,5g |
| Overhang |
18,5mm |
| Supplied counterweight |
cartridge weight 3 - 5,5g |
| Optional counterweights |
cartridge weights 1,5 - 3g, 6 - 9g |
| Downforce range |
10 - 30mN |
| Speed variance |
±0,8 % |
| Wow and flutter |
±0,12 % |
| Signal to noise |
-65dB |
| Platter weight/diameter |
0,9kg/280mm |
| Power supply type |
Mains-fed outboard power supply |
|
220 - 240V, 50 cycles or 100 - 110V, 60 cycles |
| Output voltage |
16V/500mA AC |
| Power consumption |
2W |
| Depth (lid open) |
400mm |
| Height (lid open) |
370mm |
| Dimensions (lid open) |
415 x 365 x 405mm |
| Dimensions (lid closed) |
415 x 118 x 320mm |
| Weight |
5,1kg |
| |
Ortofon 2M Red Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1,6-2,0g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Red
Cartridge weight - 7,2 g
