Yamaha MG12

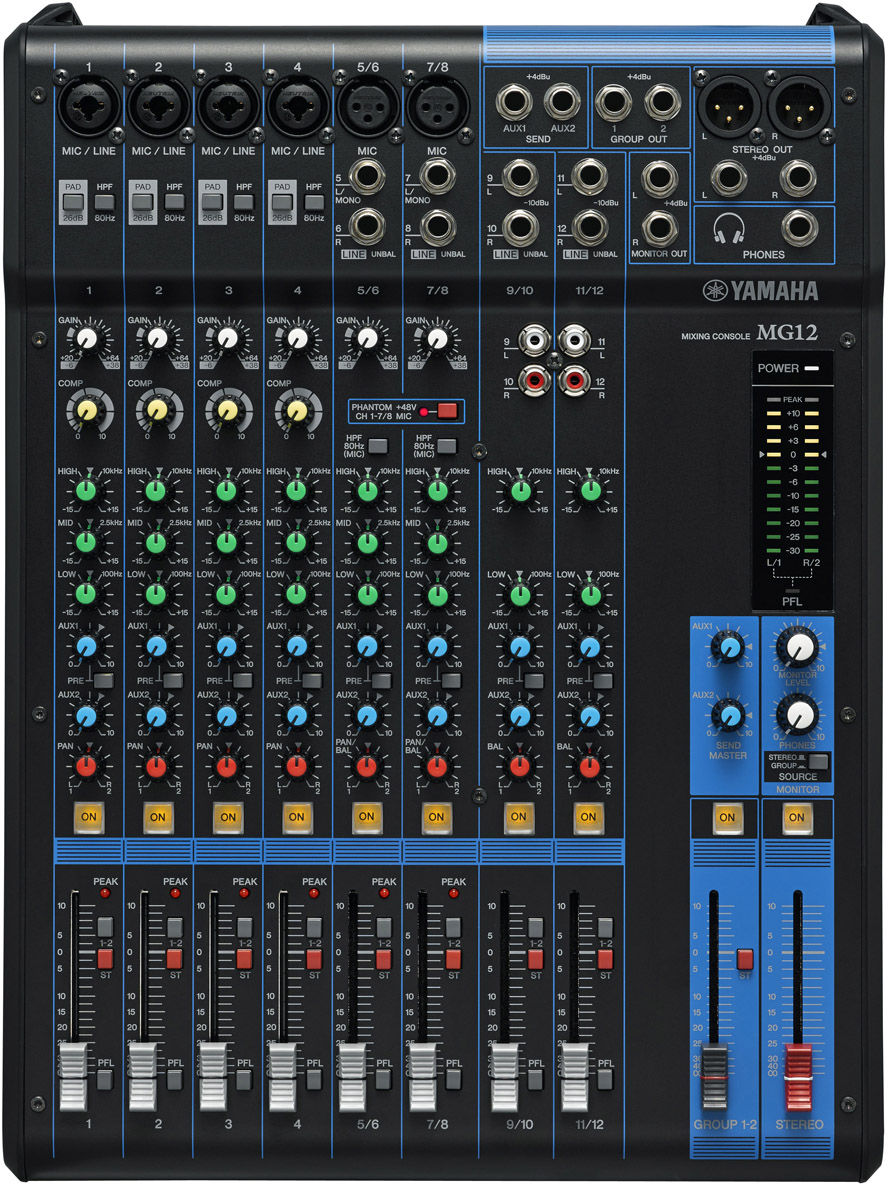

Consola de Mezcla de 12 Canales Yamaha MG12

Mesa de mezclas de 12 canales
Hasta un máximo de 6 entradas de micro/12 de línea (4 mono + 4 estéreo)
2 buses de grupo + 1 bus estéreo
2 envíos AUX (incluyendo envío para efectos)
Preamplificadores de micro “D-PRE” con circuito Darlington invertido
Compresores de mando único
Interruptor de atenuación (PAD) en las entradas mono
Alimentación phantom +48 V
Salidas XLR balanceadas
Fuente de alimentación interna universal para poder utilizar la mesa en cualquier parte del mundo
Kit para montaje en rack (RK-MG12) opcional
Chasis metálico
Dimensiones (ancho x alto x profundo): 308 mm x 118 mm x 422 mm
Peso neto: 4,0 kg

I/O	Phantom power	+48 V
Input Channels	Mono[MIC/LINE]	4
	Mono/Stereo[MIC/LINE]	2
	Stereo[LINE]	2
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	2
	GROUP OUT	2
Bus		Stereo: 1, GROUP: 2, AUX: 2
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
	COMP	1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

Total harmonic distortion		0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk		-78 dB
Power requirements		AC 100 – 240 V, 50 / 60 Hz
Power consumption		22 W
Dimensions	W	308 mm (9.6")
	H	118 mm (2.8")
	D	422 mm (11.6")
Net weight		4.0 kg (8.8 lbs.)
Accessories		Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12
Others		Operating Temperature: 0 to +40˚C
