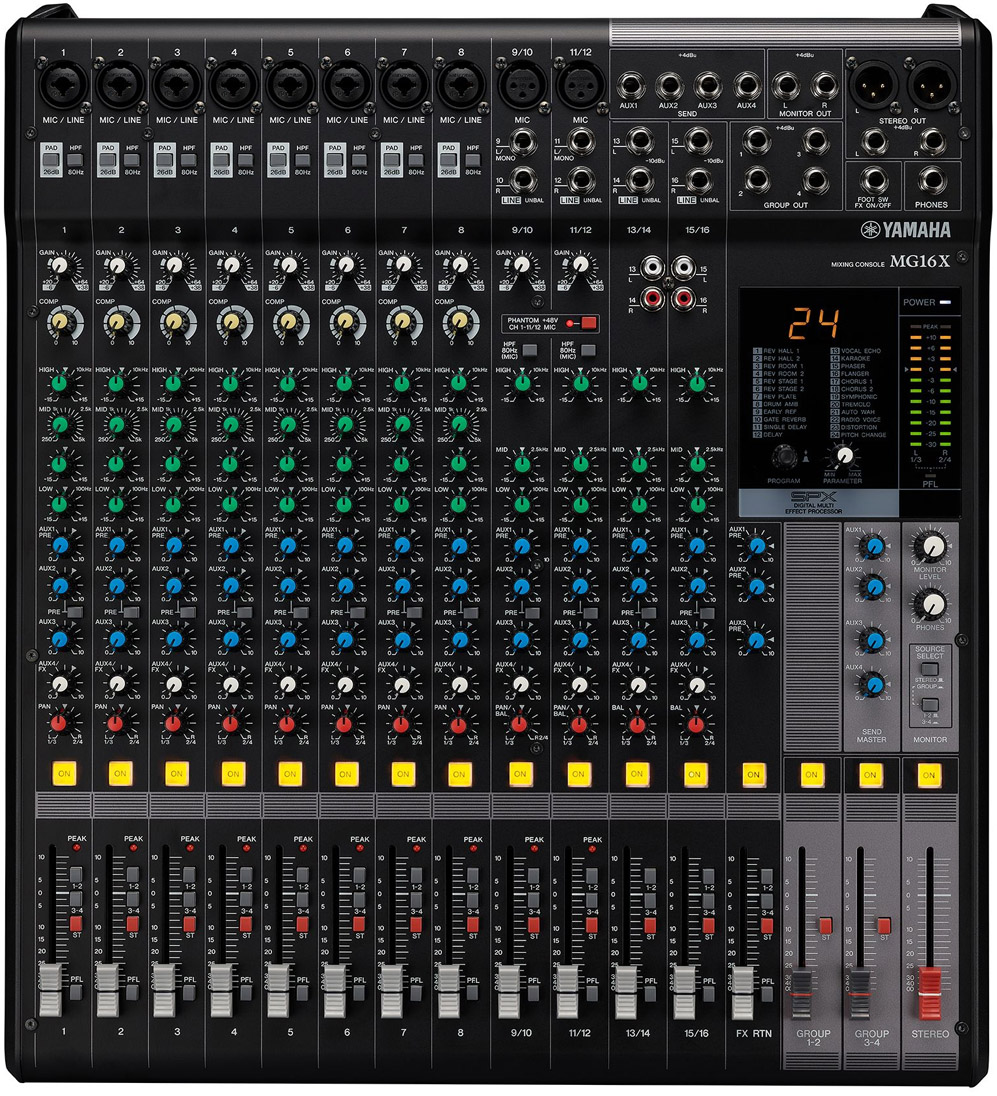

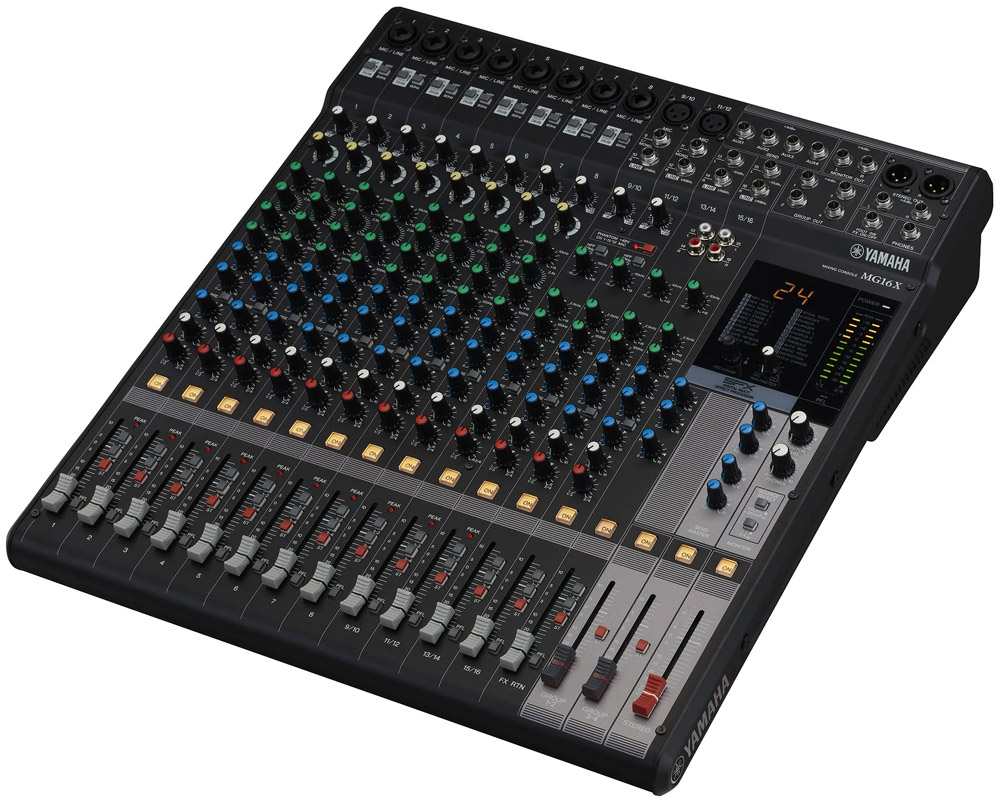

| Mixing capability |
On-board processors |
|
|
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|
|
|
|
|
|
|
| I/O |
Phantom power |
|
|
+48 V |
|
|
|
|
|
|
|
| Digital I/O |
|
|
- |
|
|
|
|
|
|
|
| Input Channels |
Mono[MIC/LINE] |
|
|
8 |
|
|
|
|
|
|
|
| Mono/Stereo[MIC/LINE] |
|
|
2 |
|
|
|
|
|
|
|
| Stereo[LINE] |
|
|
2 |
|
|
|
|
|
|
|
| Output Channels |
STEREO OUT |
|
|
2 |
|
|
|
|
|
|
|
| MONITOR OUT |
|
|
1 |
|
|
|
|
|
|
|
| PHONES |
|
|
1 |
|
|
|
|
|
|
|
| AUX SEND |
|
|
4 |
|
|
|
|
|
|
|
| GROUP OUT |
|
|
4 |
|
|
|
|
|
|
|
| Bus |
|
|
Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) |
|
|
|
|
|
|
|
| Input Channel Function |
PAD |
|
|
26 dB (Mono) |
|
|
|
|
|
|
|
| HPF |
|
|
80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
|
|
|
|
|
|
|
| COMP |
|
|
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
|
|
|
|
|
|
|
| EQ HIGH |
|
|
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
|
|
|
|
|
|
|
| EQ MID |
|
|
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking |
|
|
|
|
|
|
|
| EQ LOW |
|
|
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
|
|
|
|
|
|
|
| PEAK LED |
|
|
LED turns on when post EQ signal reaches 3 dB below clipping |
|
|
|
|
|
|
|
| Level Meter |
|
|
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
|
|
|
|
|
|
|
| General specifications |
| Total harmonic distortion |
|
|
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
|
|
|
|
|
|
|
| Frequency response |
|
|
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
|
|
|
|
|
|
|
| Hum & noise level |
Equivalent input noise |
|
|
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
|
|
|
|
|
|
|
| Residual output noise |
|
|
-102 dBu (STEREO OUT, STEREO master fader: Min) |
|
|
|
|
|
|
|
| Crosstalk |
|
|
-78 dB |
|
|
|
|
|
|
|

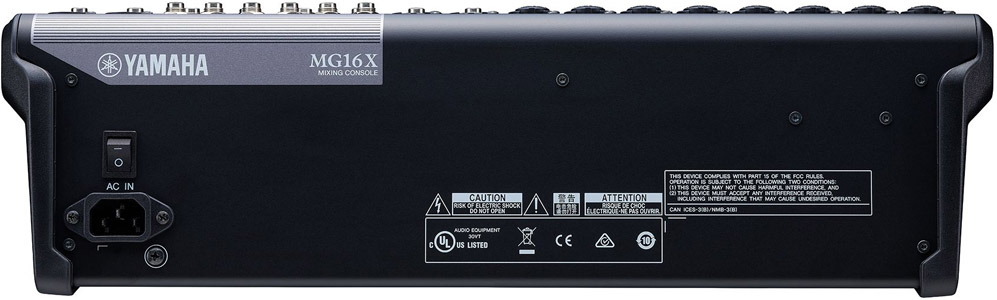

| Power requirements |
|
|
AC 100 – 240 V, 50 / 60 Hz |
|
|
|
|
|
|
|
| Power consumption |
|
|
30 W |
|
|
|
|
|
|
|
| Dimensions |
W |
|
|
444 mm (17.5") |
|
|
|
|
|
|
|
| H |
|
|
130 mm (5.1") |
|
|
|
|
|
|
|
| D |
|
|
500 mm (19.7") |
|
|
|
|
|
|
|
| Net weight |
|
|
6.8 kg (15.0 lbs.) |
|
|
|
|
|
|
|
| Accessorios |
|
|
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit, Optional Accessory: Foot Switch FC5 |
|
|
|
|
|
|
|
| Others |
|
|
Operating Temperature: 0 to +40˚C |
|
|
|
|
|
|
|
